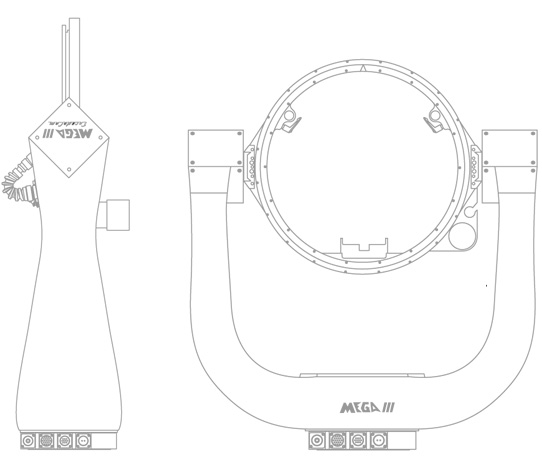

Mega III 360:

The Mega III is a robust yet lightweight 3 axis remote head system capable of carrying a wide range of camera packages. The system is particularly suitable for fixed and telescopic crane applications and has sufficient power to maneuver even large camera packages quickly and accurately without backlash or jitter

The MEGA III’s incredibly rigid yet lightweight construction gives it a high level of inherent stability compared with any other 3 Axis non-stabilised remote heads. The system automatically centers the camera lens in the roll axis to provide nodal 360° continuous roll capability. The slip rings enable full 360 degree movement in all axes, with camera power, video, and Preston cable control run through the head.

Mega III 360 Applications:

Telescoping cranes
Fixed arm cranes
Dollies
Hard mounts

Mega III 360 Specs.

Dimensions (H x W x D) 35in. x 31in x 29in. - 89cm x 78cm x 73cm
Weight (without counterbalance weights) 84lbs - 38kg
Pan, tilt & roll - 360° continuous
Electronic limit switches - Pan, tilt & roll
Speed range pan, tilt & roll - Max. 2sec. per 360°
Mounting base: Standard Mitchell

Outputs at camera plate:

2x 14V camera power regulated
1x 30V camera power unregulated
1x 30V 3pin XLR accessories power
1x Aux- CAC/RCU/LCS through sliprings
2x 75ohm BNC

Motion capture recording:

100sec. max. of pan, tilt & roll movement
Multitrack individual axis recording
Replay move at any speed up to 300%
Up/download available on request

Full look down:

Cameras with 400ft. + 1000ft. mags
535B, ARRICAM or PV XL only

Advantages

Water resistant
Lightweight
Precise nodal roll
